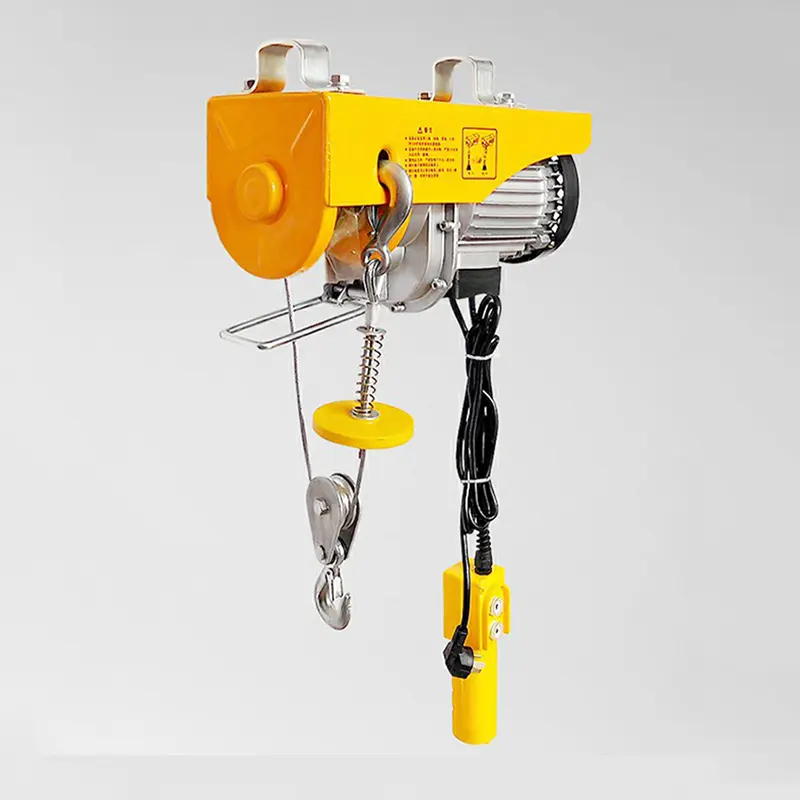

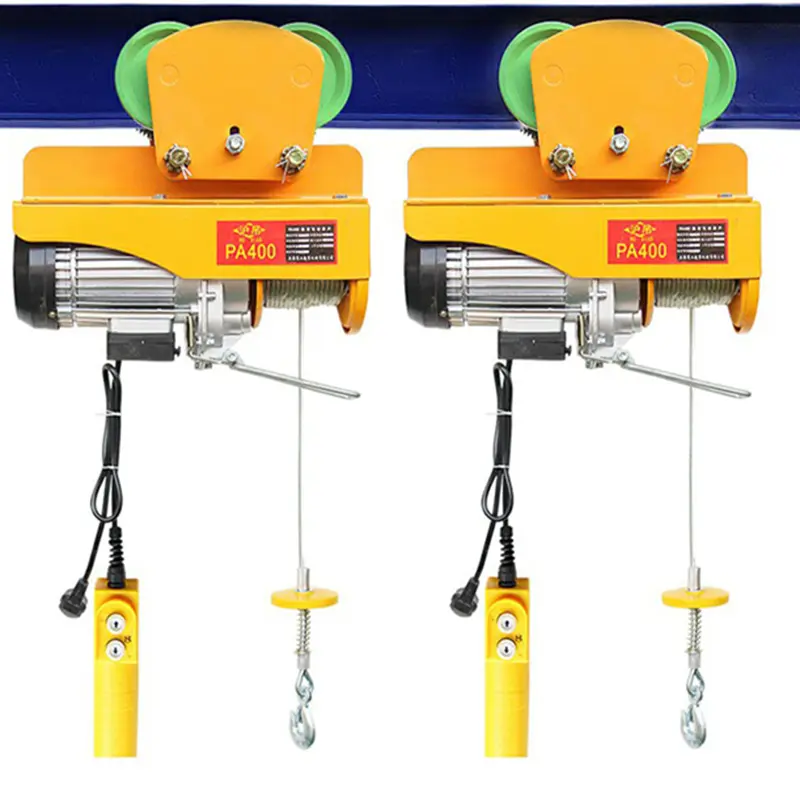

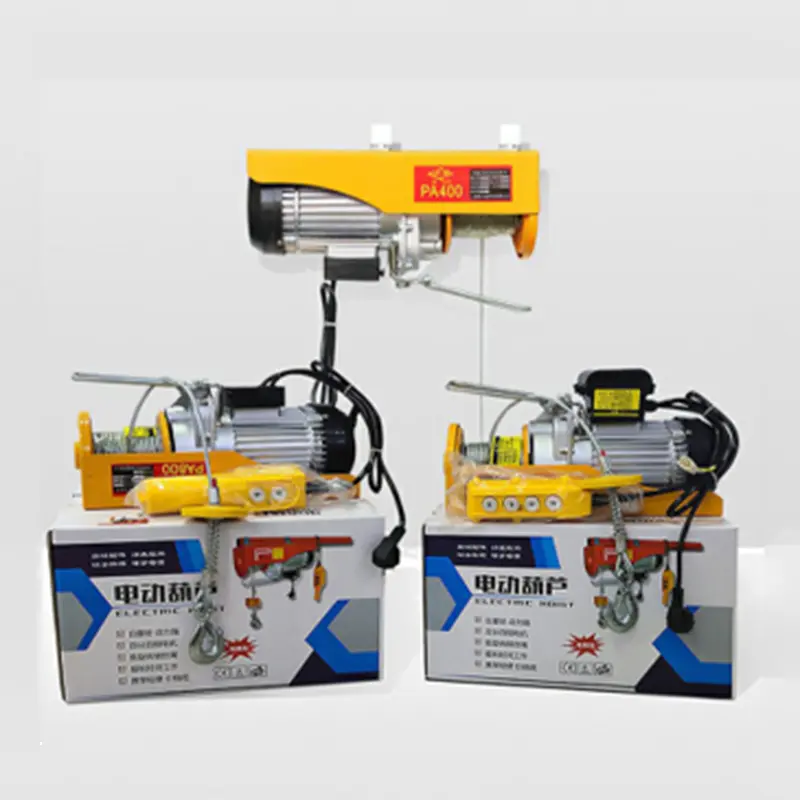

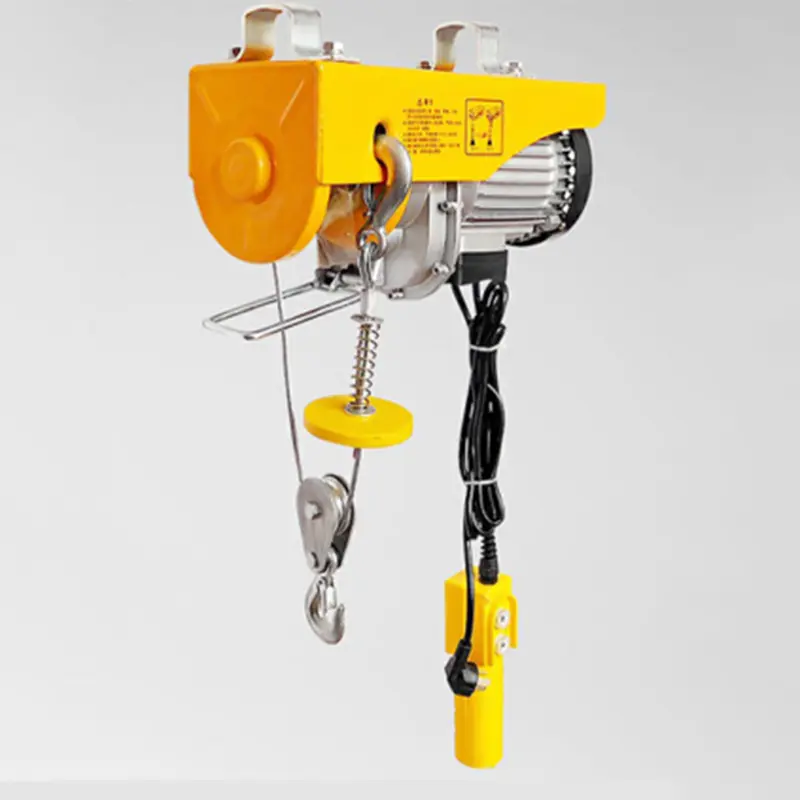

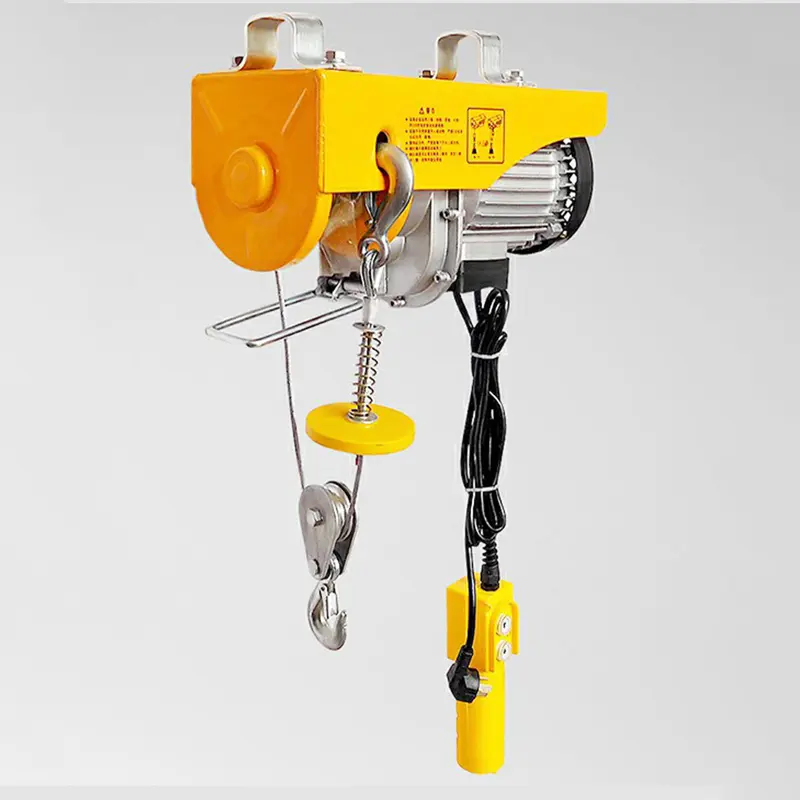

Micro Electric Hoist 200kg-1000kg 220v

Micro electric hoist 200Kg-1000Kg 220V
Small crane winch hoist 200Kg-1000Kg 220V
Small winch hoist 200Kg-1000Kg 220V
Light crane hoist 200Kg-1000Kg 220V

product details

Working Principle

The working principle of a micro electric hoist mainly includes the following steps:

Motor power on: When the motor of the electric hoist is powered on, the conical brake opens and the motor begins to rotate.

Elastic coupling: The motor transmits power through an elastic coupling.

Reducer: The power passes through the reducer for three-stage reduction (helical gear), ultimately driving the drum to rotate.

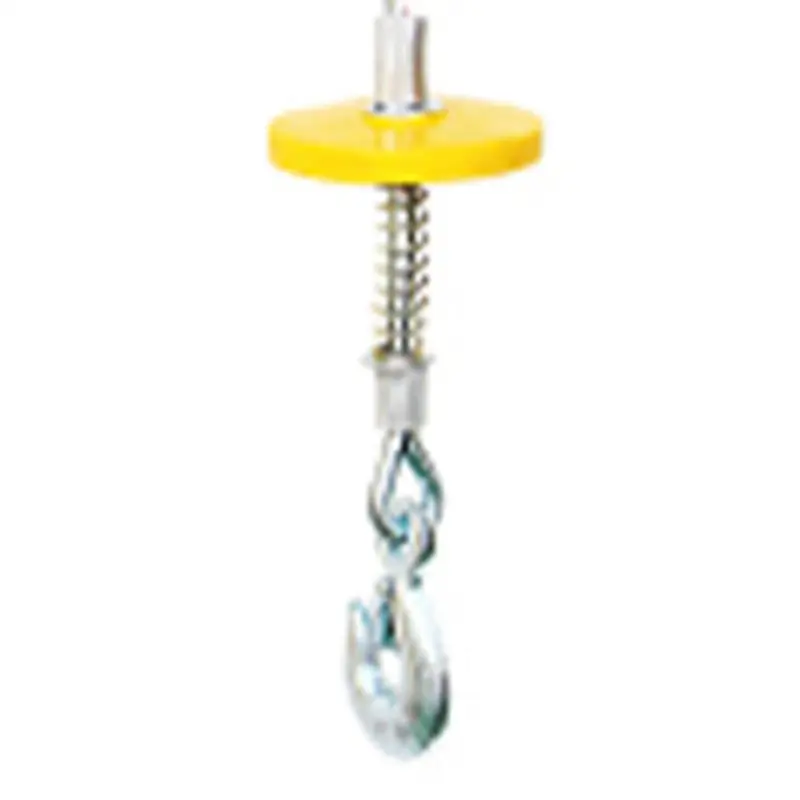

Drive wire rope: The drum drives the wire rope to lift and lower the hook.

Motor power loss: When the motor loses power, the brake closes and the electric hoist stops running.

Classification and application scenarios of micro electric hoists: Micro electric hoists are generally divided into household micro hoists and industrial micro hoists and can also be divided into wire rope micro electric hoists and loop chain micro electric hoists. They are suitable for various occasions, such as household and industrial use.

Scope of Use

Industrial production: On the production line, micro electric hoists are used to quickly and safely transport raw materials, semi-finished products, or finished products, improving production efficiency. For example, a 5-ton electric hoist can easily transport heavy objects within a range of 10 meters, reducing the need for manpower.

Warehouse management: In the warehouse, micro electric hoists are used for loading and unloading goods, reducing the labor intensity of manual handling and lowering the risk of damage to goods. For example, a 3-ton electric hoist can cover up to 6-meter shelves, improving warehouse management efficiency.

Maintenance and repair: During equipment maintenance and repair, the micro electric hoist provides necessary lifting support to help lift maintenance personnel and tools to the required height. For example, a 2-ton electric hoist can lift maintenance personnel and tools to a height of 5 meters, making equipment maintenance easier.

Construction and decoration: On construction sites, micro electric hoists are used to enhance building materials such as bricks, cement, and steel, improving construction efficiency. For example, a 1.5-ton electric hoist can lift materials weighing up to 1.5 tons to a height of 10 meters. In indoor decoration, micro electric hoists are used to lift decorative materials and furniture, reducing the risk of damage during transportation. For example, a 1-ton electric hoist can easily lift large furniture to a height of 3 meters.

Home and other small projects: Micro electric hoists are particularly suitable for home and small project occasions, with simple structure, easy installation, and using single-phase electricity as the power source. It is widely used in mechanical manufacturing, electronics, automobiles, shipbuilding, workpiece assembly, as well as production lines, assembly lines, assembly machines, logistics and transportation in high-tech industrial zones.

Technical Parameters

Model(Kg)	High(m)
100-200	12
100-200	20
100-200	30
150-300	12
150-300	20
150-300	30
200-400	12
200-400	20
200-400	30
250-500	12
250-500	20
250-500	30
300-600	12
300-600	20
300-600	30
400-800	12
400-800	20
400-800	30
500-1000	12
500-1000	20
500-1000	30
600-1200	12
600-1200	20
600-1200	30
