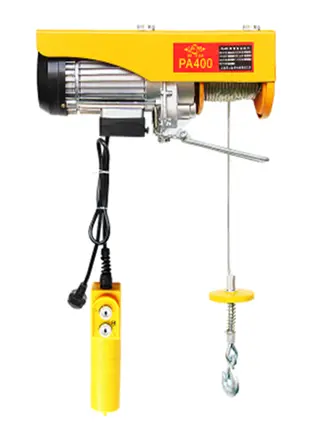

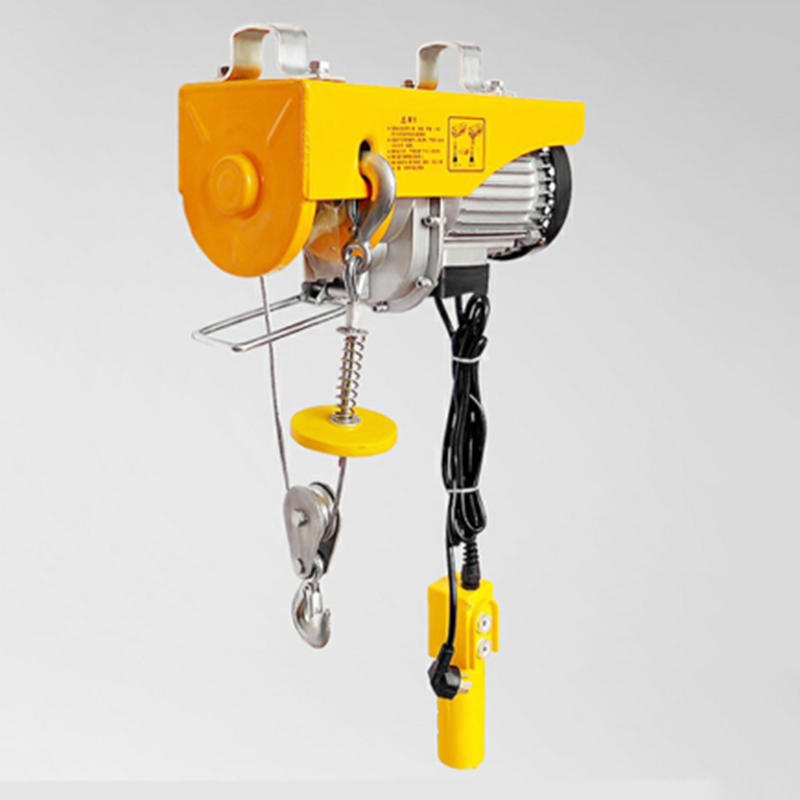

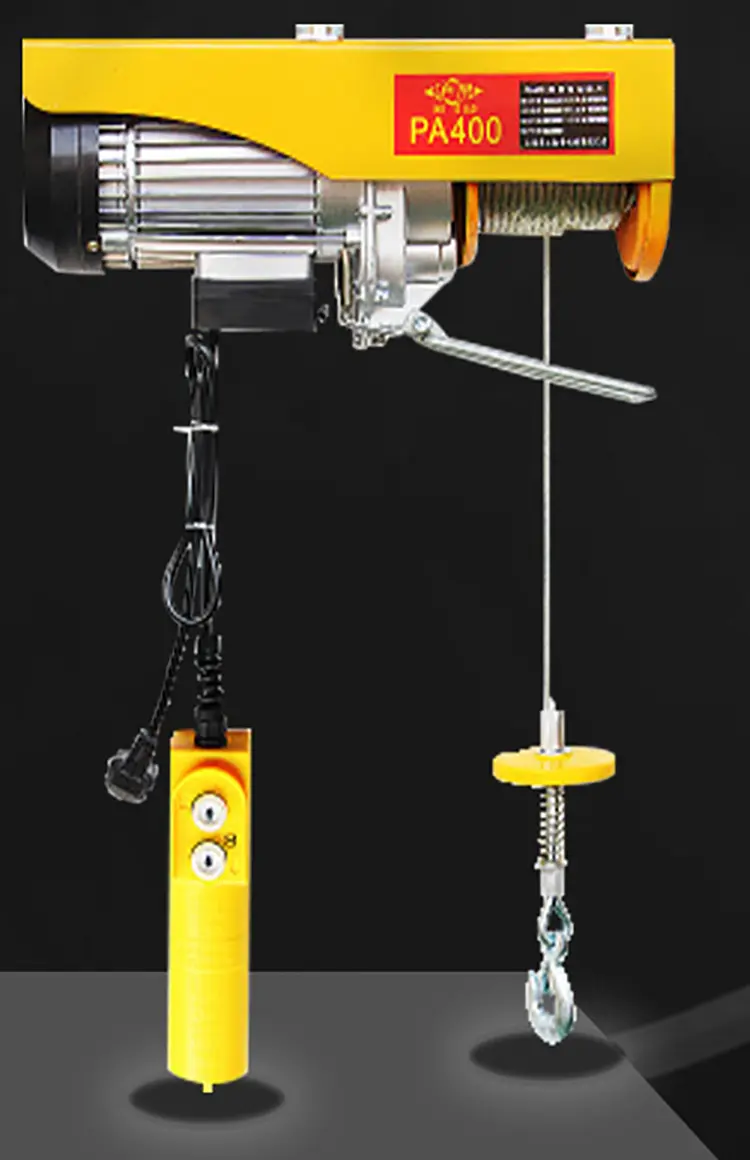

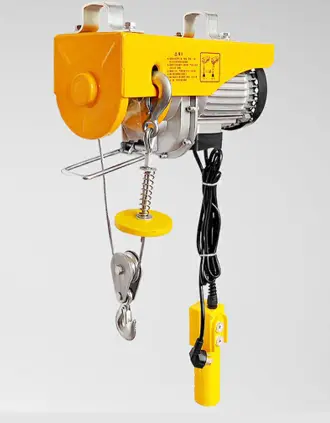

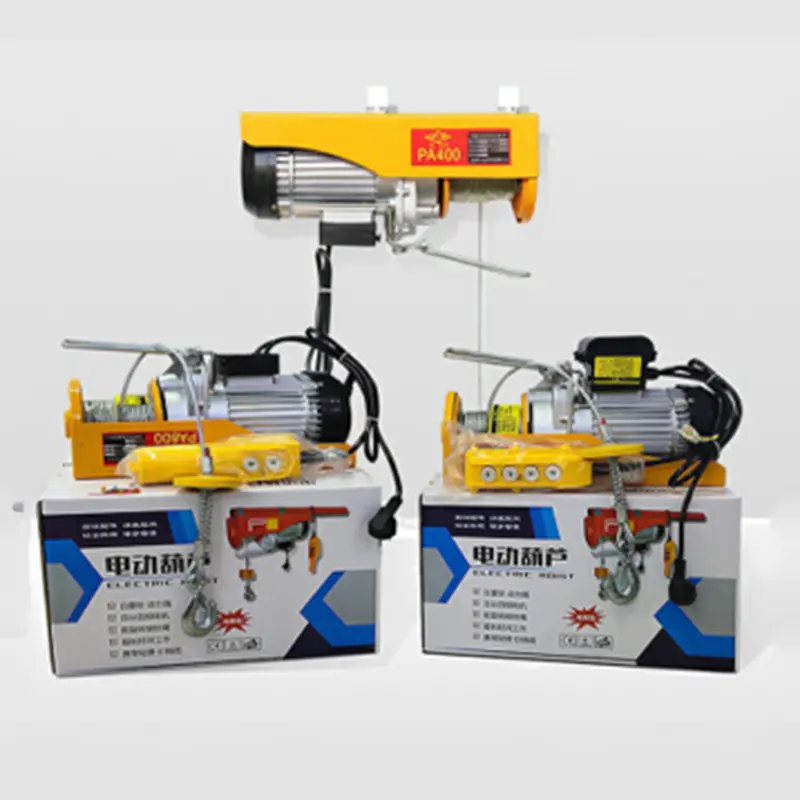

Micro Electric Hoist for Household Use 220V

Small crane can be equipped with a remote-controlled steel wire rope multifunctional hoist

product details

Working Principle

Mainly relying on the forward and reverse rotation function of single-phase motors. A single-phase motor has two windings, one main winding and one auxiliary winding. The main winding is connected in series with the auxiliary winding, and a common terminal wire is connected at the connection point. After the main and auxiliary windings are connected in series, they are connected in parallel with the capacitor. Capacitors play a phase shifting role during motor start-up, changing the phase difference and generating a rotating magnetic field. When the main winding is energized, the motor rotates forward; When the secondary winding is energized, the motor reverses direction. Therefore, micro electric hoists achieve the function of rising and falling by changing the energized winding.

Scope of Use

Micro electric hoists have a wide range of applications in households, mainly including the following aspects:

Home maintenance and handling: Micro electric hoists can easily handle various home maintenance tasks, such as installing lighting fixtures, replacing ceilings, etc. It not only saves time and effort, but also effectively avoids physical injuries caused by traditional manual labor methods.

Moving and heavy object handling: During moving, electric hoists can easily carry heavy objects, reduce manual burden, and improve efficiency. Whether it's moving or daily home maintenance, electric hoists can greatly save time and energy.

Efficient utilization of small space: For small-sized households, micro electric hoists are compact in size and do not take up space. Paired with a wall rotating bracket, the angle can be adjusted freely, making it convenient and practical, especially suitable for families with limited space.

Multifunctionality: This electric hoist is not only suitable for home maintenance and handling, but can also be used in places such as housing, shopping malls, buildings, and corridors. It is suitable for lifting food, heavy objects, and engineering operations.

Safe and reliable: The micro electric hoist operates smoothly, has good stability, is safe and reliable, and is suitable for household use.

Technical Parameters

Model(Kg)	High(m)
100-200	12
100-200	20
100-200	30
150-300	12
150-300	20
150-300	30
200-400	12
200-400	20
200-400	30
250-500	12
250-500	20
250-500	30
300-600	12
300-600	20
300-600	30
400-800	12
400-800	20
400-800	30
500-1000	12
500-1000	20
500-1000	30
600-1200	12
600-1200	20
600-1200	30

Lifting height: 12m, 20, 30m

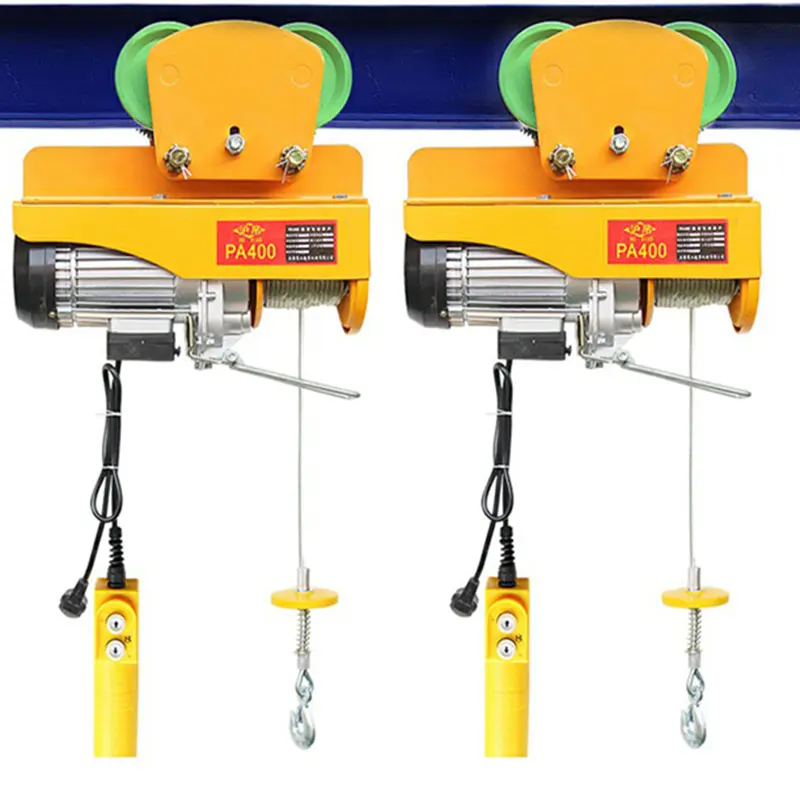

Track model: 100mm

Type: Wire rope electric hoist

Standard lifting height: 19m

Increase speed: 8m/min

Chain diameter: 3mm

Minimum distance between two hooks: 55mm

Rated lifting capacity: 250Kg

Net weight: 11Kg

Load: 250Kg

Micro electric hoist

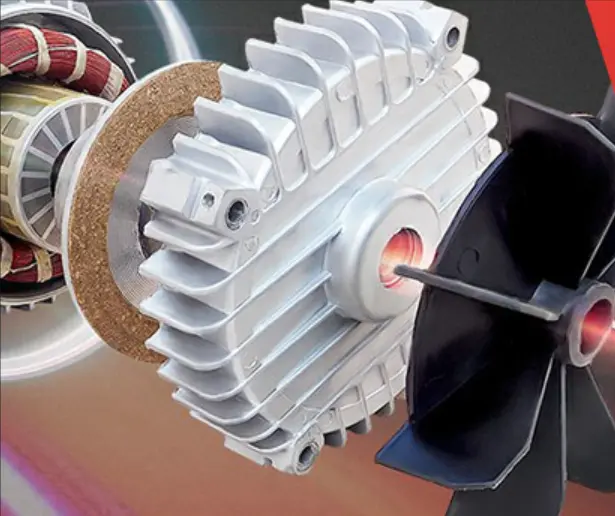

Copper core motor

Strong power

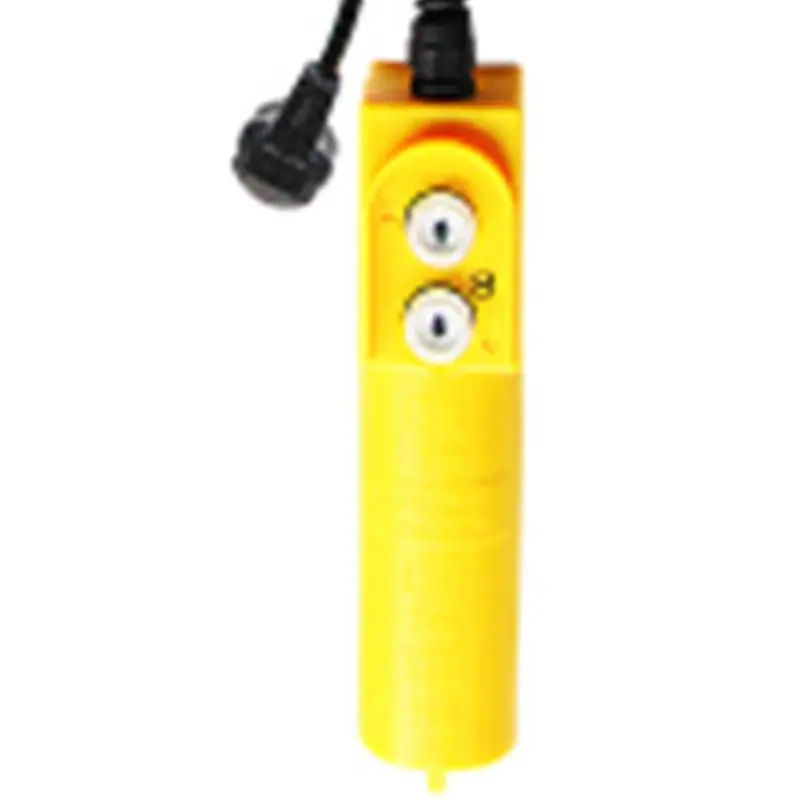

Easy operation

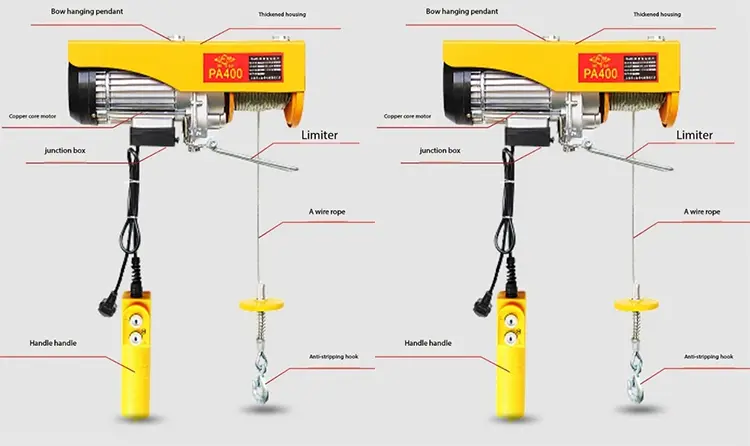

Product Analysis

Application scope

daily civilian use, freight logistics, industrial production

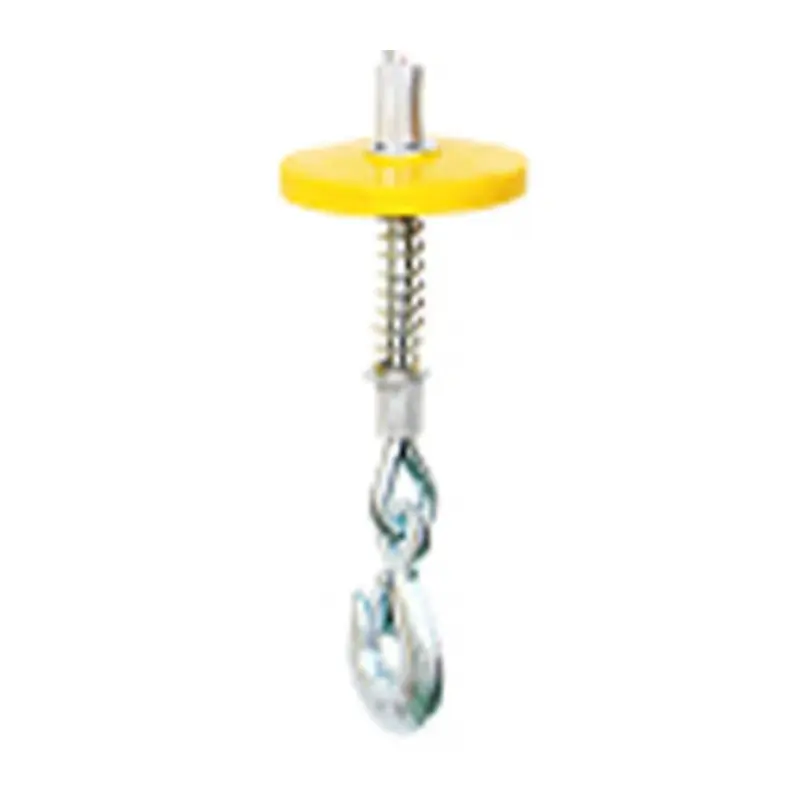

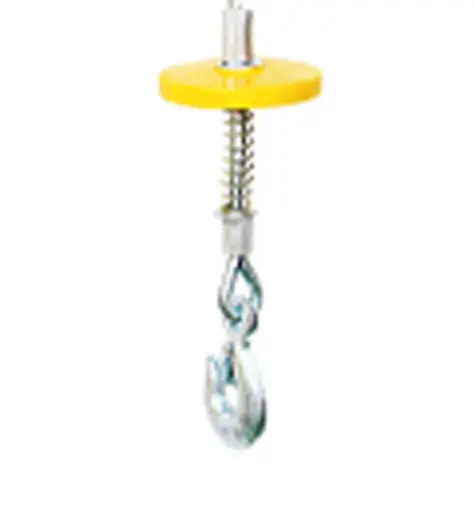

Anti-collision limiter

Prevent damage to the motor

When the limit frame triggers the limit device, the crane will automatically stop working

All specifications and parameters are available

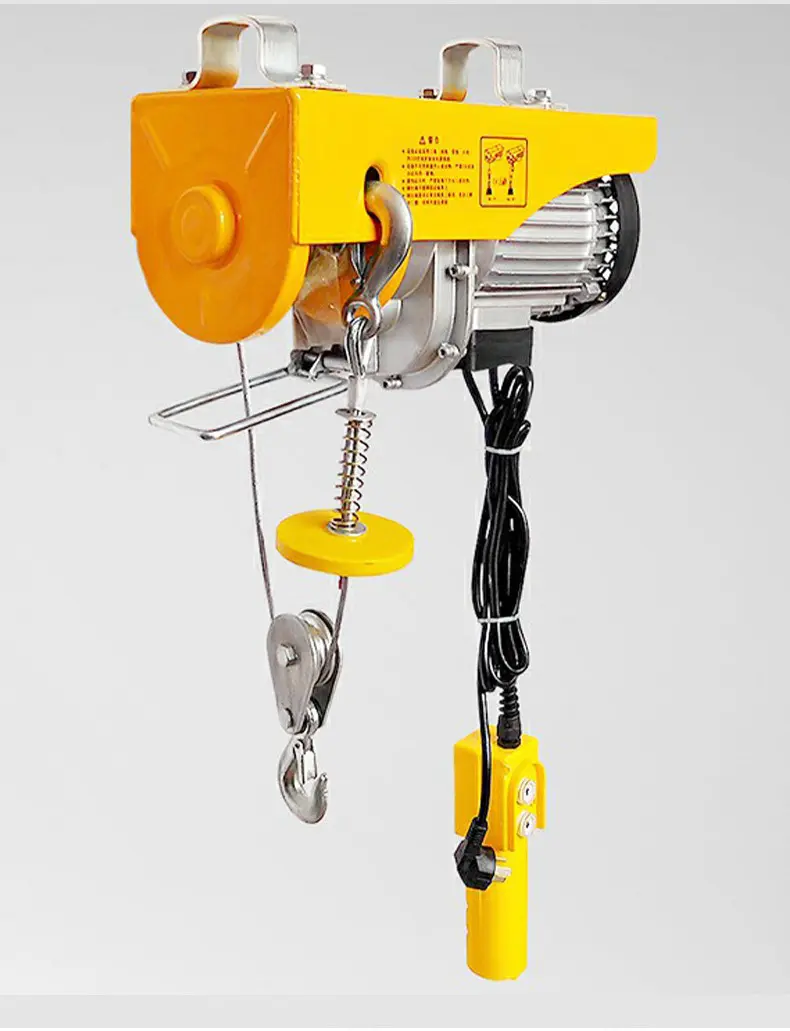

The machine defaults to a single lift when it leaves the factory, and both single and double lifts are available for the machine

Technical Parameters

Model	Standard length for steel wire rope	Single hook hoisting	Double hook hoisting	Motor power	Single hook speed	Double hook speed	Capacitance	Weight
PA200	12m	100kg	200kg	0.55Kw	12m/s	6m/s	16VF	11kg
PA300	12m	150kg	300kg	0.65Kw	12m/s	6m/s	16VF	11.5kg
PA400	12m	200kg	400kg	0.95Kw	12m/s	6m/s	30VF	15.8kg
PA500	12m	250kg	500kg	1.1Kw	12m/s	6m/s	30VF	16.3kg
PA600	12m	300kg	600kg	1.05Kw	12m/s	6m/s	40VF	16.8kg
PA800	12m	400kg	800kg	1.5Kw	12m/s	6m/s	50VF	17.8kg
PA1000	12m	500kg	1000kg	2.0Kw	12m/s	6m/s	70VF	29.4kg
