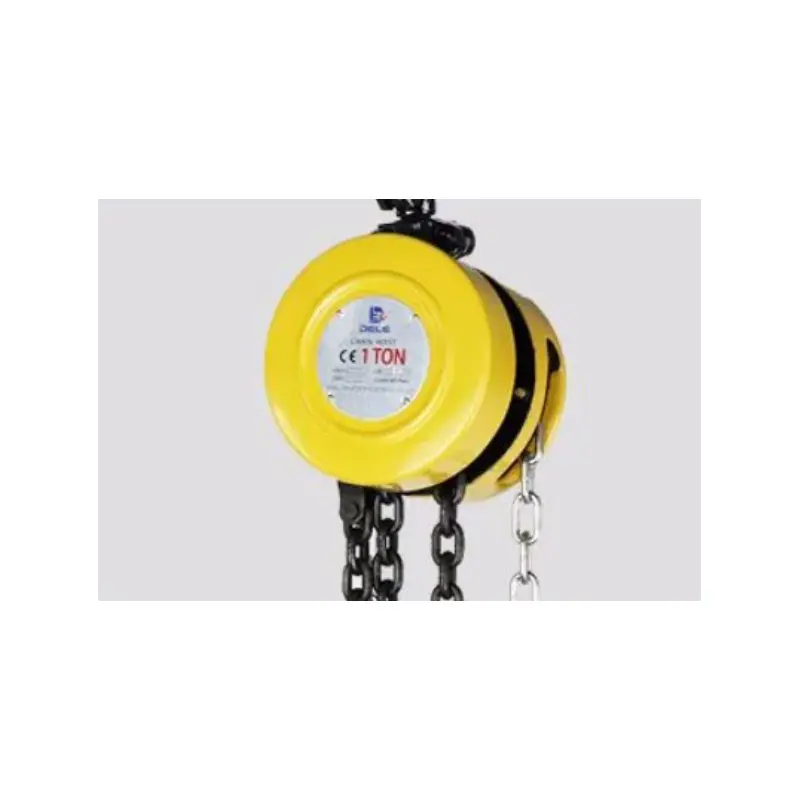

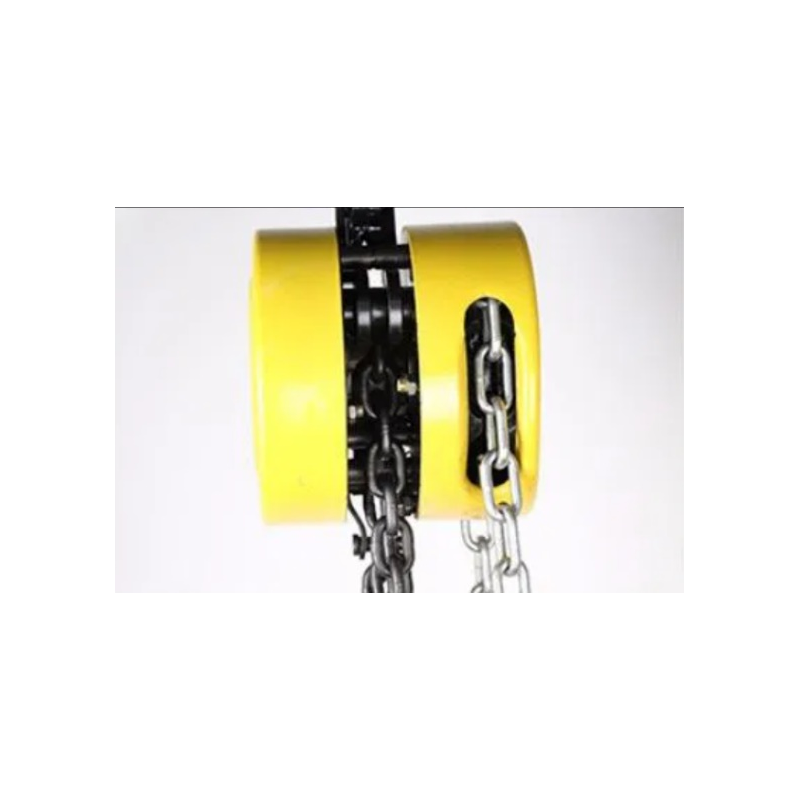

Round chain hoist/Round manual chain block hand chain hoist
Products description
Capacity: From 0.5T-20T
Thick friction discs: Safety latches.
Grade 80 load chain-made by imported machine: Safe factor 4: 1.
We do more than 3 rounds inspections before export, every product must be inspected before delivery.
Excellent quality, good welding, wonderful appearance..
The chain block can be attached on the trolley, and used as a travelling chain block. It is also suitable to monorail overhead conveying system, hand travelling crane and jib crane.
Sample order and trail order are acceptable.
Excellent after-sale service, market agent support and protection.
Features
Five prominent features in design and in service.
1. Safety in operation with minimum maintenance.
2. High efficiency and small size, easy to operate.
3. Light weight and easy handling.
4. Fine appearance with small size.
5. Durability in service.
Operation instructions
Please inspect the hooks and body, the brake device and the lubrication of transmitting parts, load chain in good condition.

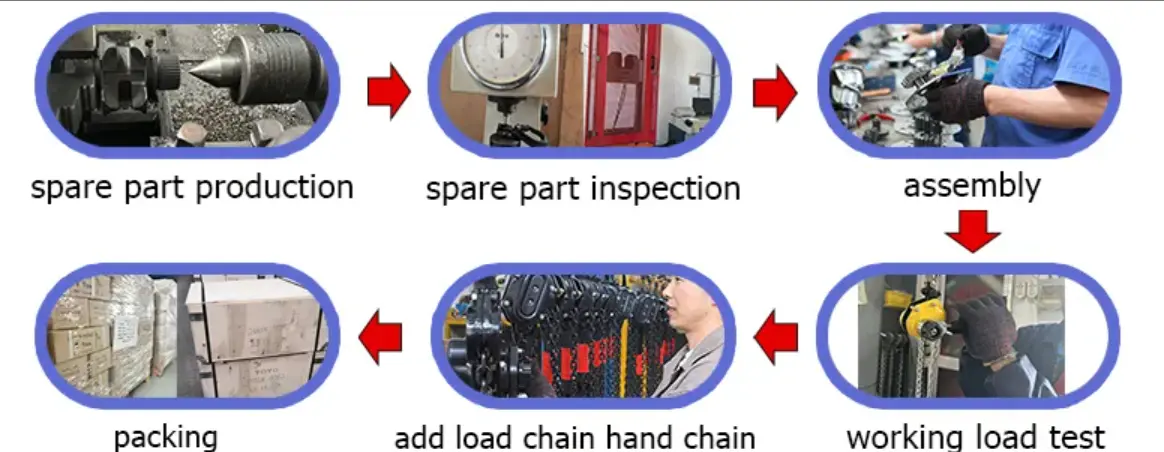

Production process
Technical parameters
|
Model |
Yaxnova0.5 |
Yaxnova1.0 |
Yaxnova1.5 |
Yaxnova2.0 |
Yaxnova3.0 |
Yaxnova5.0 |
Yaxnova7.5 |
Yaxnova10 |
|
Loading capacity(Kg) |
500 |
1000 |
1500 |
2000 |
3000 |
5000 |
7500 |
10000 |
|
Standard(m) |
2.5 |
2.5 |
2.5 |
2.5 |
3.0 |
3.0 |
3.0 |
3.0 |
|
Running test load(KN) |
0.75 |
1.5 |
2.25 |
3.0 |
4.5 |
6.25 |
10 |
12.5 |
|
Headroom(drawn close up)Hmin(mm) |
240 |
270 |
347 |
380 |
470 |
600 |
700 |
700 |
|
Effort required to lift max load |
221 |
304 |
343 |
314 |
343 |
381 |
392 |
392 |
|
Load chain number of fall |
1 |
1 |
1 |
2 |
2 |
2 |
3 |
4 |
|
Load chain diameter(mm) |
6 |
6 |
8 |
6 |
8 |
10 |
10 |
10 |
|
Dimensions(mm) A |
120 |
120 |
142 |
178 |
142 |
178 |
210 |
356 |
|
Dimensions(mm) B |
108 |
122 |
139 |
122 |
139 |
162 |
162 |
162 |
|
Dimensions(mm) C |
24 |
28 |
34 |
34 |
38 |
48 |
64 |
64 |
|
Dimensions(mm) D |
120 |
142 |
178 |
142 |
178 |
210 |
210 |
210 |
|
Net weight(Kg) |
8 |
10 |
16 |
14 |
24 |
36 |
58 |
68 |
|
Gross weight(Kg) |
28*21*1 |
20*24*1 |
34*29*2 |
33*28*1 |
38*38*2 |
45*39*2 |
55*51*2 |
62*50*2 |
|
Size (L*W*H) Cm |
7 |
8 |
0 |
9 |
0 |
4 |
9 |
8 |

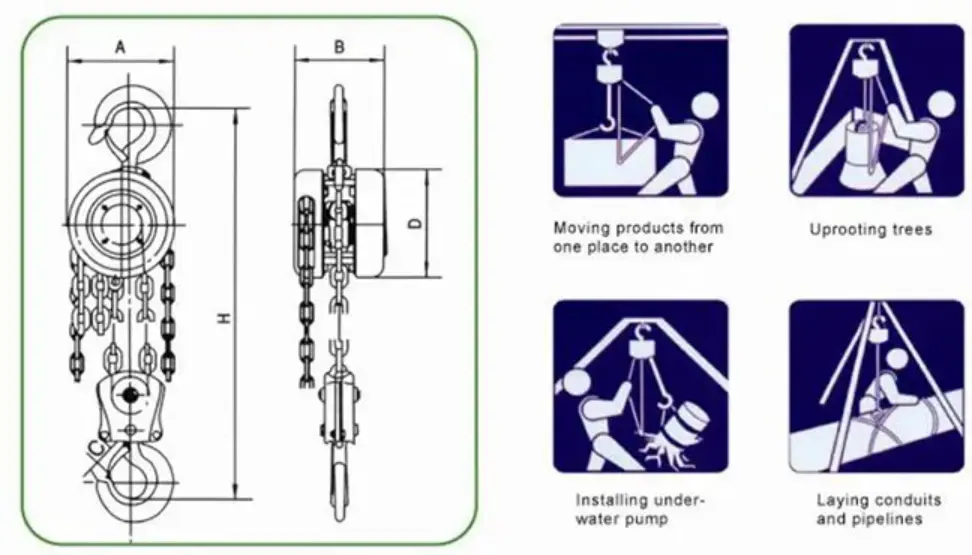

Use to the manual chain hoist

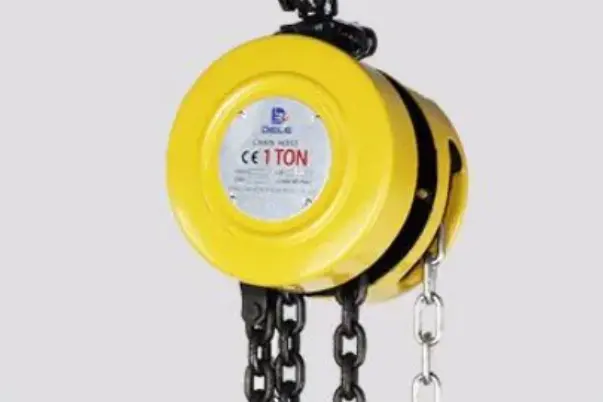

Spray

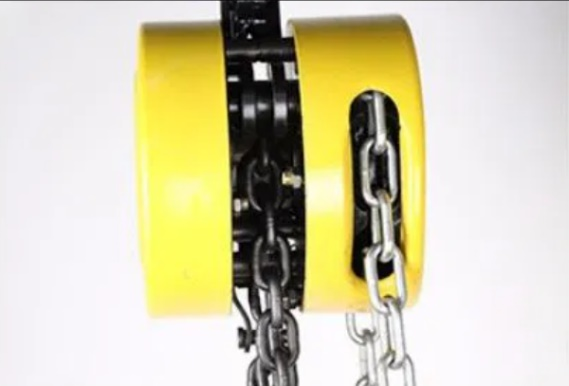

End anchor

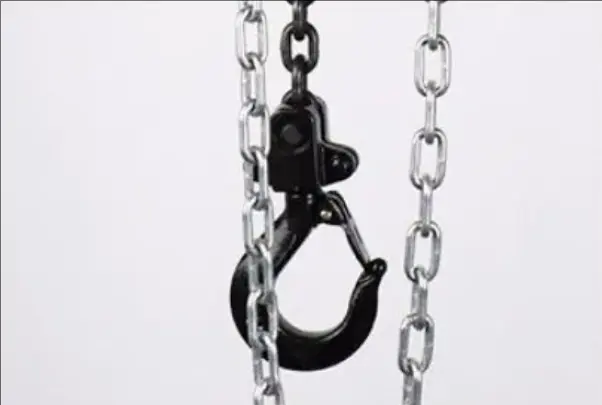

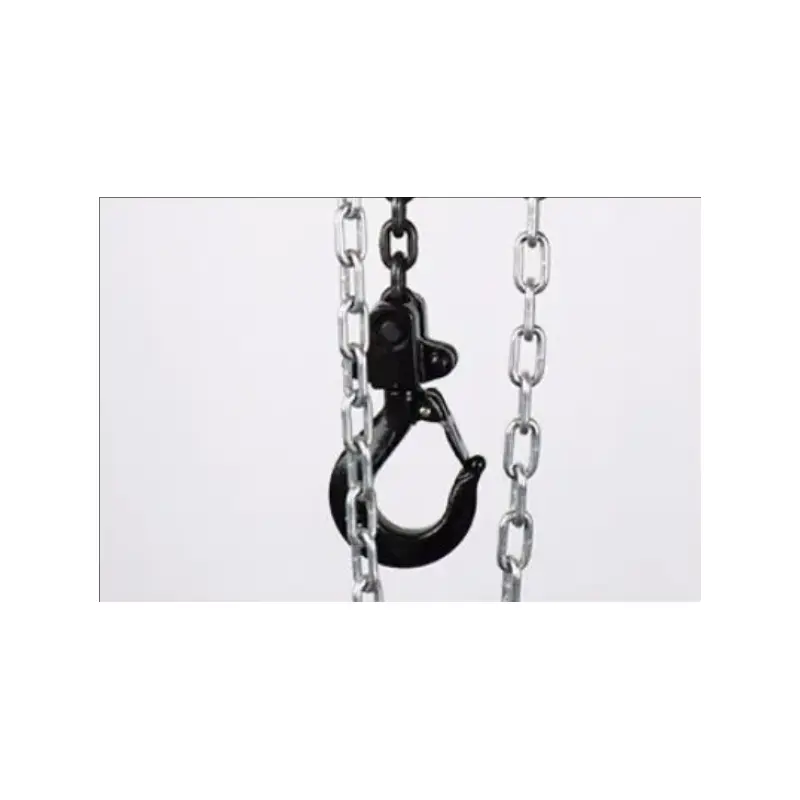

Hook

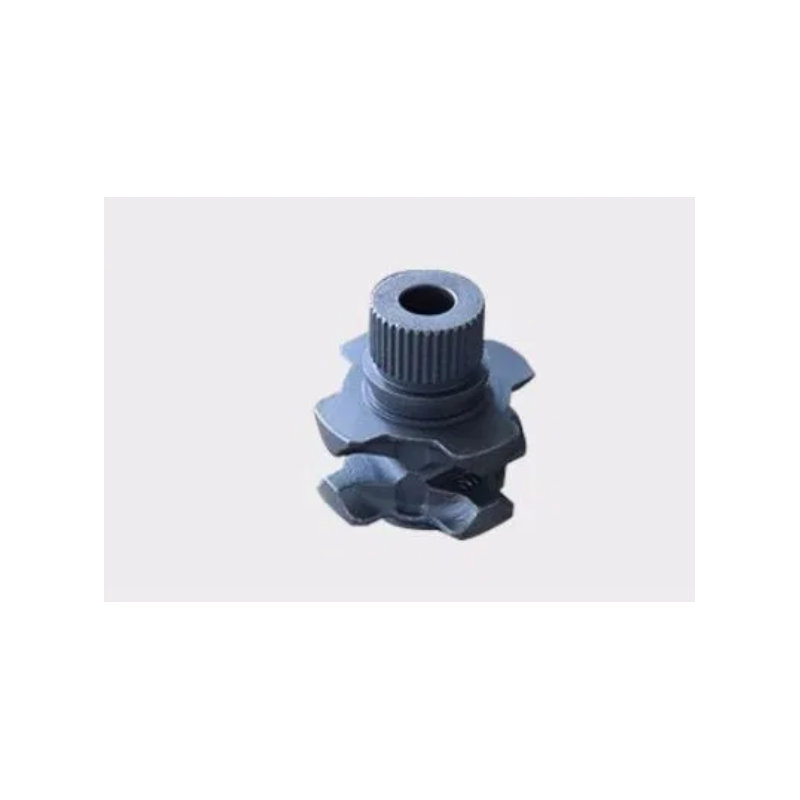

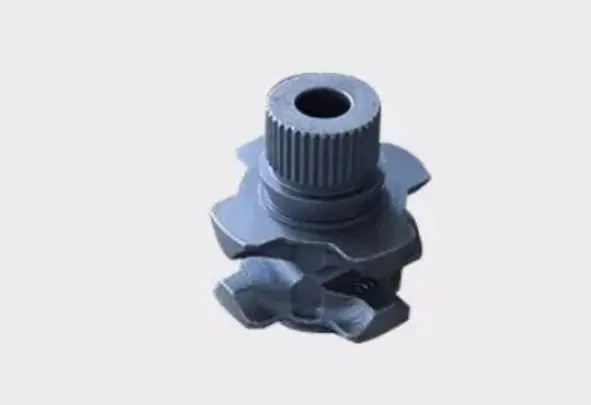

Wheel
