Electric Hoist Series

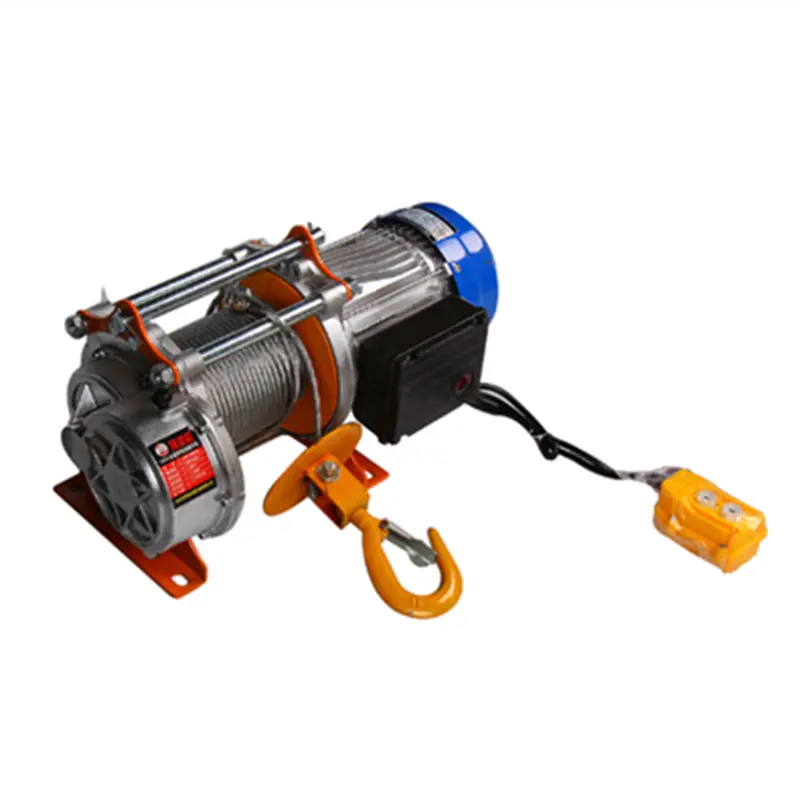

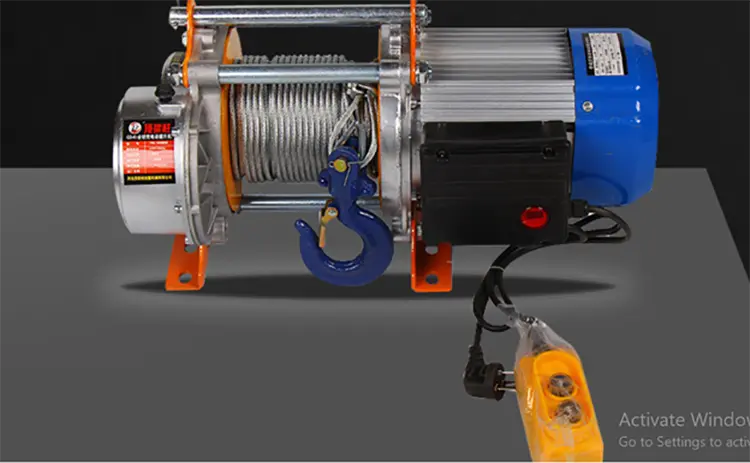

Wire Rope Electric Hoist
Lifting height: 1-100m
Track model: Applicable
Minimum distance between two hooks: 0-10mm
Aluminum shell elevator
Copper core motor
Excellent quality
Flexible operation
Application scope
Production workshop, construction sites, truck uses, home decoration, logistics assembly, warehouses, etc.

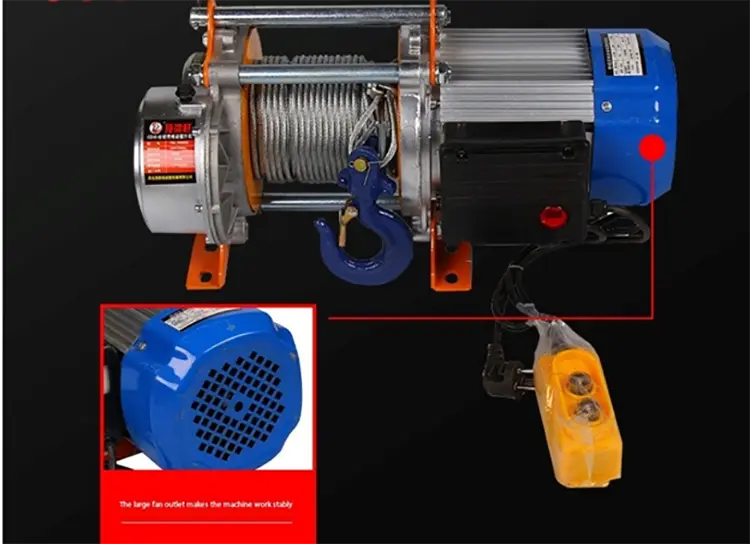

Silent cooling of large fan
Increase the fan port to accelerate heat dissipation.
Dual heat dissipation design, extending usage time without burning the machine for a long time.
Technical Parameters
Model |
Output voltage |
Horizontal traction |
Vertical lifting weight |
Control mode |
No-load speed |
Wirerope |
Motor material |
Weight |
3000 Pound |
12V/24V |
1361Kg |
320Kg |
Manual/Remote Control |
3m/minute |
5mm*6m |
Pure copper core motor |
7.0Kg |
3500 Pound |
12V/24V |
1590Kg |
380Kg |
Manual/Remote Control |
3 m/minute |
5mm*12m |
Pure copper core motor |
9.0Kg |
4500 Pound |
12V/24V |
2043Kg |
500Kg |
Manual/Remote Control |
4 m/minute |
5mm*12m |
Pure copper core motor |
12Kg |
6000 Pound |
12V/24V |
2700Kg |
1000Kg |
Manual/Remote Control |
8 m/minute |
5mm*20m |
Pure copper core motor |
9.0Kg |
9500 Pound |
12V/24V |
4275Kg |
2000Kg |
Manual/Remote Control |
8 m/minute |
5mm*24m |
Pure copper core motor |
35Kg |
12000 Pound |
12V/24V |
5400Kg |
2500Kg |
Manual/Remote Control |
8 m/minute |
5mm*24m |
Pure copper core motor |
37Kg |
Product Details

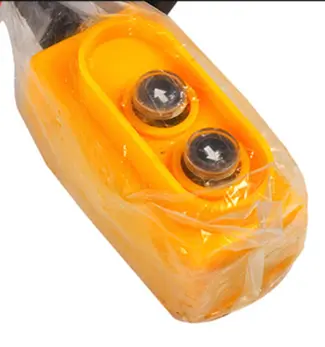

Portable switch
Made of high-quality materials.
High reliability index for high temperature resistance.
Pay attention to details

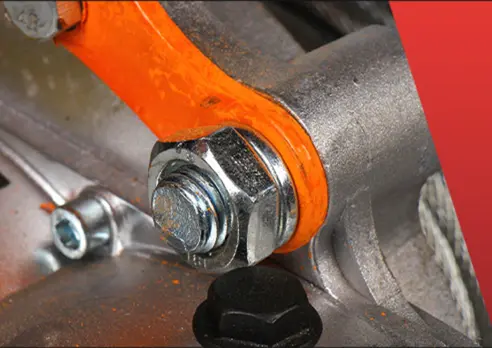

Widen the nut
Well tighten the equipment to prevent loosening.

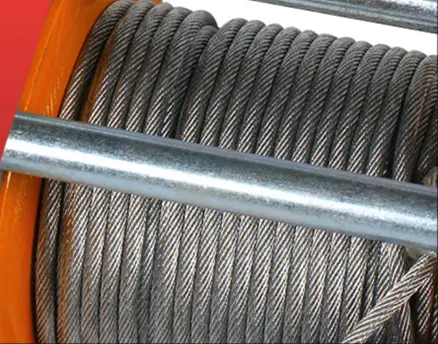

Pure steel rope guide frame
Make the steel wire rope twist in and out regularly.
Smooth winding rope and easy to use.

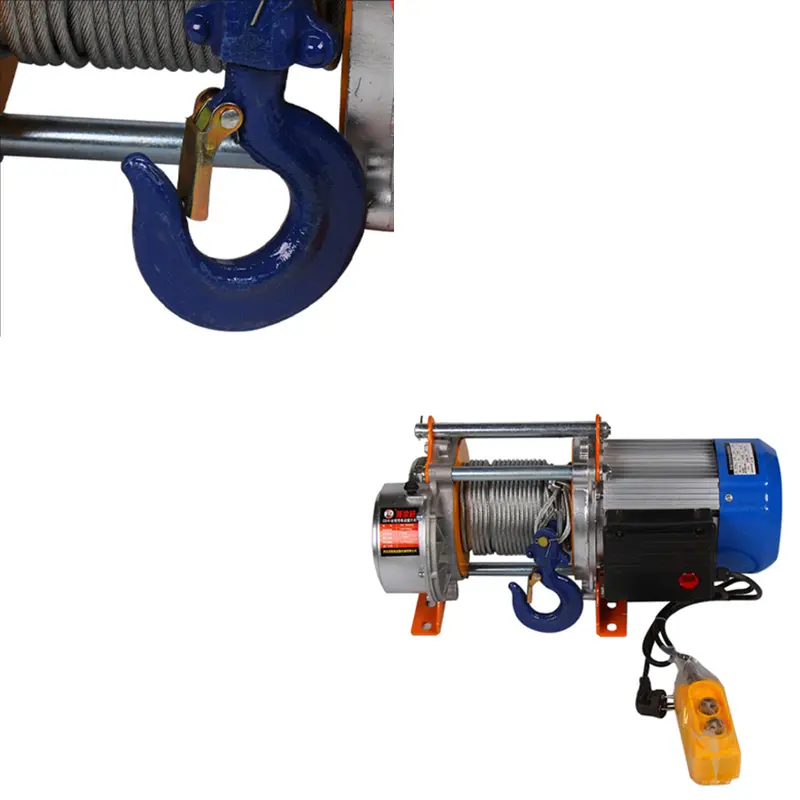

Special hook
Use with confidence, reliable and sturdy.
Not easily worn and resistant to tension.
